In the ever-evolving world of electronics, the demand for high-performance and reliable printed circuit boards (PCBs) has been steadily increasing. Manufacturers are constantly exploring new materials and techniques to enhance the capabilities of these essential components. One such material that has garnered significant attention in recent years is aluminum oxide, also known as alumina (Al2O3). Aluminum oxide PCBs offer a unique set of properties that make them well-suited for a wide range of applications, from high-power electronics to harsh environments.

What is Aluminum Oxide?

Aluminum oxide, or alumina, is a chemical compound composed of aluminum and oxygen. It is a highly versatile material that exhibits excellent thermal conductivity, electrical insulation, and mechanical strength. These properties make aluminum oxide an ideal choice for various applications, including electronic components, abrasives, and catalysts.

Chemical and Physical Properties of Aluminum Oxide

Property	Value
Chemical Formula	Al2O3
Molecular Weight	101.96 g/mol
Density	3.95 g/cm³
Melting Point	2072°C (3761°F)
Boiling Point	2977°C (5390°F)
Thermal Conductivity	25-35 W/m·K
Electrical Resistivity	10^14 Ω·cm
Hardness (Mohs Scale)	9

Aluminum oxide exists in various crystalline phases, with α-alumina (corundum) being the most stable and widely used form. This phase exhibits exceptional hardness, surpassed only by diamond, making it an excellent abrasive material. Additionally, α-alumina is chemically inert, resistant to corrosion, and highly refractory, meaning it can withstand extremely high temperatures without degradation.

Aluminum Oxide PCBs: An Overview

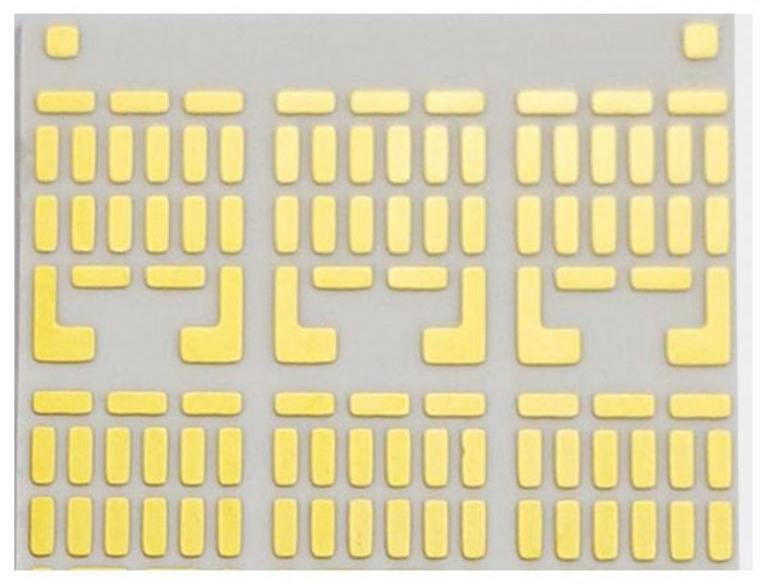

Aluminum oxide PCBs, also known as alumina PCBs or ceramic PCBs, are printed circuit boards that utilize aluminum oxide as the base material instead of the traditional fiberglass-reinforced epoxy resin (FR-4) or other polymer-based materials. These PCBs offer several advantages over their conventional counterparts, making them suitable for demanding applications.

Advantages of Aluminum Oxide PCBs

1. High Thermal Conductivity: Aluminum oxide has a significantly higher thermal conductivity compared to traditional PCB materials. This property allows for efficient heat dissipation, which is crucial for high-power electronics and devices operating in harsh environments.
2. Electrical Insulation: Despite its high thermal conductivity, aluminum oxide is an excellent electrical insulator. This characteristic helps prevent short circuits and maintains the integrity of the electrical signals.
3. Mechanical Strength: Aluminum oxide PCBs are known for their exceptional mechanical strength and durability. They can withstand high temperatures, vibrations, and harsh environments without compromising their performance.
4. Chemical Resistance: Alumina PCBs are highly resistant to chemical attacks, making them suitable for applications involving corrosive environments or harsh chemicals.
5. Dimensional Stability: Aluminum oxide exhibits minimal thermal expansion, ensuring dimensional stability and reducing the risk of warping or deformation under temperature fluctuations.
6. High-Frequency Performance: The low dielectric constant and low dissipation factor of aluminum oxide make it suitable for high-frequency applications, such as RF and microwave circuits.

Applications of Aluminum Oxide PCBs

Due to their unique properties, aluminum oxide PCBs are widely used in various industries and applications, including:

1. Aerospace and Defense: Aluminum oxide PCBs are commonly used in aviation electronics, military equipment, and space applications where reliability and performance under extreme conditions are critical.
2. Automotive Electronics: The automotive industry relies on aluminum oxide PCBs for powertrain control modules, engine management systems, and other high-temperature applications.
3. Industrial Automation: Alumina PCBs are employed in industrial automation systems, robotics, and control systems, where durability and heat dissipation are crucial.
4. Medical Equipment: Medical devices, such as X-ray machines, surgical tools, and implantable devices, often utilize aluminum oxide PCBs for their chemical resistance and high-temperature tolerance.
5. Telecommunications: The low dielectric constant and low dissipation factor of aluminum oxide make it suitable for high-frequency telecommunications equipment, such as base stations and satellite communications.
6. Power Electronics: Aluminum oxide PCBs are used in power electronics applications, including motor drives, inverters, and power converters, where efficient heat dissipation is essential.

Manufacturing Process of Aluminum Oxide PCBs

The manufacturing process of aluminum oxide PCBs involves several steps and specialized techniques. Here’s a general overview of the process:

1. Substrate Preparation: High-purity aluminum oxide powder is pressed and sintered at high temperatures to form a dense, ceramic substrate.
2. Via Formation: Vias (conductive pathways through the substrate) are created using techniques such as mechanical drilling, laser drilling, or punching.
3. Metallization: Conductive layers, typically made of refractory metals like tungsten or molybdenum, are deposited on the substrate surface and within the vias using techniques like sputtering or vapor deposition.
4. Patterning: The conductive layers are patterned using photolithography and etching processes to create the desired circuit layout.
5. Component Mounting: Electronic components, such as integrated circuits, resistors, and capacitors, are mounted onto the patterned substrate using specialized assembly techniques like brazing, soldering, or conductive epoxy adhesives.
6. Testing and Inspection: The assembled PCBs undergo rigorous testing and inspection processes to ensure proper functionality and adherence to quality standards.

It’s worth noting that the manufacturing process of aluminum oxide PCBs is more complex and costly compared to traditional PCB production due to the high temperatures, specialized materials, and techniques involved.

Advantages and Limitations of Aluminum Oxide PCBs

Like any material, aluminum oxide PCBs have both advantages and limitations that need to be considered when selecting the appropriate PCB technology for a particular application.

Advantages

1. High Thermal Conductivity: Aluminum oxide PCBs offer excellent thermal management capabilities, allowing for efficient heat dissipation and improved reliability in high-power and high-temperature applications.
2. Electrical Insulation: Despite their high thermal conductivity, aluminum oxide PCBs maintain excellent electrical insulation properties, preventing short circuits and ensuring signal integrity.
3. Mechanical Strength and Durability: The mechanical strength and durability of aluminum oxide PCBs make them resistant to vibrations, shocks, and harsh environments, extending the lifespan of the electronic devices.
4. Chemical Resistance: Alumina PCBs are highly resistant to chemical attacks, making them suitable for applications involving corrosive environments or harsh chemicals.
5. High-Frequency Performance: The low dielectric constant and low dissipation factor of aluminum oxide enable high-frequency operations, making these PCBs suitable for RF and microwave applications.
6. Dimensional Stability: Aluminum oxide exhibits minimal thermal expansion, ensuring dimensional stability and reducing the risk of warping or deformation under temperature fluctuations.

Limitations

1. Cost: The manufacturing process of aluminum oxide PCBs is more complex and expensive compared to traditional PCB materials, which can be a limiting factor for cost-sensitive applications.
2. Rework and Repair Challenges: Due to the high processing temperatures and materials involved, reworking or repairing aluminum oxide PCBs can be challenging and may require specialized techniques and equipment.
3. Limited Availability and Manufacturing Capacity: The production of aluminum oxide PCBs is more specialized and limited compared to traditional PCB manufacturing, which can impact lead times and availability.
4. Design Constraints: The unique properties and manufacturing processes of aluminum oxide PCBs may impose design constraints or limitations, such as via aspect ratios, feature sizes, and layer count restrictions.
5. Thermal Expansion Mismatch: The thermal expansion coefficient of aluminum oxide differs from that of other materials used in electronic components, which can lead to reliability issues if not properly addressed during design and assembly.
6. Specialized Assembly Techniques: Mounting components on aluminum oxide PCBs often requires specialized assembly techniques, such as brazing or conductive epoxy adhesives, which can increase complexity and manufacturing costs.

When considering the use of aluminum oxide PCBs, it is crucial to carefully evaluate the specific requirements of the application, weigh the advantages and limitations, and consult with experienced manufacturers and designers to ensure optimal performance and reliability.

Frequently Asked Questions (FAQs)

1. What are the main advantages of using aluminum oxide PCBs? Aluminum oxide PCBs offer several advantages, including high thermal conductivity for efficient heat dissipation, excellent electrical insulation properties, mechanical strength and durability, chemical resistance, dimensional stability, and suitability for high-frequency applications.
2. In which industries are aluminum oxide PCBs commonly used? Aluminum oxide PCBs are widely used in industries such as aerospace and defense, automotive electronics, industrial automation, medical equipment, telecommunications, and power electronics, where reliable performance under demanding conditions is essential.
3. How does the manufacturing process of aluminum oxide PCBs differ from traditional PCBs? The manufacturing process of aluminum oxide PCBs involves specialized techniques and high temperatures. It typically includes substrate preparation, via formation, metallization, patterning, component mounting, and rigorous testing and inspection. The process is generally more complex and costly compared to traditional PCB production.
4. What are the potential limitations of using aluminum oxide PCBs? Some limitations of aluminum oxide PCBs include higher manufacturing costs, challenges in rework and repair, limited availability and manufacturing capacity, design constraints, thermal expansion mismatch with other materials, and the need for specialized assembly techniques.
5. Can aluminum oxide PCBs be used for high-frequency applications? Yes, aluminum oxide PCBs are well-suited for high-frequency applications due to their low dielectric constant and low dissipation factor. They are commonly used in RF and microwave circuits, as well as telecommunications equipment.
