Introduction to FPGA Programming

Field Programmable Gate Arrays (FPGAs) are powerful and versatile devices that allow you to create custom digital circuits. Unlike traditional microprocessors, which have a fixed architecture, FPGAs can be programmed and reprogrammed to perform specific tasks. This flexibility makes FPGAs an attractive choice for a wide range of applications, from simple logic circuits to complex systems-on-chip.

In this article, we will guide you through the process of programming an FPGA by yourself. We will cover the basics of FPGA architecture, the tools and languages used for FPGA development, and the steps involved in designing, simulating, and deploying your own FPGA projects.

What is an FPGA?

An FPGA is an integrated circuit that consists of an array of programmable logic blocks, interconnected by a network of configurable routing resources. These logic blocks can be configured to perform various functions, such as:

• Combinational logic (AND, OR, XOR, etc.)
• Sequential logic (flip-flops, latches)
• Memory (RAM, ROM)
• Arithmetic operations (adders, multipliers)
• Input/output (I/O) interfaces

By combining these basic building blocks, you can create complex digital circuits that can perform a wide range of tasks, from simple glue logic to full-fledged processors and accelerators.

Advantages of FPGA Programming

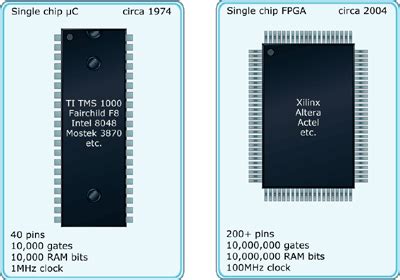

Programming an FPGA offers several advantages over using traditional microprocessors or application-specific integrated circuits (ASICs):

1. Flexibility: FPGAs can be reconfigured to perform different functions as needed, making them adaptable to changing requirements.

2. Parallelism: FPGAs allow you to exploit parallelism inherent in many algorithms, enabling faster execution compared to sequential processors.

3. Low latency: FPGAs can achieve low latency by implementing custom pipelines and minimizing communication overhead.

4. Energy efficiency: FPGAs can be optimized for power consumption, making them suitable for battery-powered and embedded applications.

5. Rapid prototyping: FPGAs enable quick iteration and testing of designs, reducing development time and costs compared to ASICs.

FPGA Development Tools and Languages

To program an FPGA, you will need a set of development tools and languages that allow you to describe your design, simulate its behavior, and generate a configuration file for the FPGA device. The most common tools and languages used in FPGA development are:

Hardware Description Languages (HDLs)

HDLs are specialized programming languages used to describe the structure and behavior of digital circuits. The two most widely used HDLs are:

1. VHDL (VHSIC Hardware Description Language): VHDL is a strongly typed language with a syntax similar to Ada. It supports both structural and behavioral descriptions of digital circuits.

2. Verilog: Verilog is a more concise language with a syntax similar to C. It is widely used in industry and supports both structural and behavioral descriptions, as well as system-level modeling.

High-Level Synthesis (HLS) Tools

HLS tools allow you to describe your design using high-level programming languages, such as C, C++, or SystemC. The HLS tool then automatically generates an equivalent HDL description, which can be further optimized and synthesized for the FPGA device. Some popular HLS tools include:

1. Xilinx Vivado HLS: A part of the Xilinx Vivado design suite, supporting C, C++, and SystemC.

2. Intel HLS Compiler: Integrat
