Introduction to PCB Conformal Coating

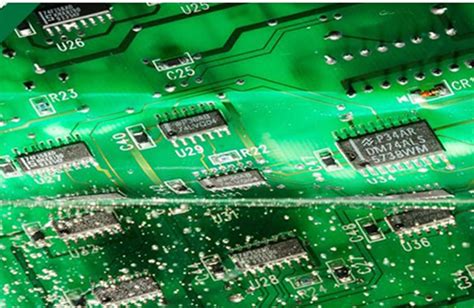

PCB conformal coating is a protective layer applied to printed circuit boards (PCBs) to shield them from environmental factors such as moisture, dust, chemicals, and extreme temperatures. This coating helps to ensure the reliability and longevity of electronic devices by preventing short circuits, corrosion, and other damage to the PCB Components.

Choosing the right PCB conformal coating is crucial for the success of your electronic project. In this article, we will provide you with 12 comprehensive guides to help you make an informed decision when selecting a conformal coating for your PCBs.

Guide 1: Understanding the Different Types of PCB Conformal Coatings

There are several types of PCB conformal coatings available, each with its own unique properties and advantages. The most common types include:

1. Acrylic
2. Silicone
3. Polyurethane
4. Epoxy
5. Parylene

Acrylic Conformal Coating

Acrylic conformal coatings are known for their excellent moisture resistance, ease of application, and fast drying time. They offer good electrical insulation properties and are suitable for most PCB applications.

Silicone Conformal Coating

Silicone conformal coatings provide excellent temperature and chemical resistance. They are highly flexible and can withstand extreme temperature fluctuations, making them ideal for applications exposed to harsh environments.

Polyurethane Conformal Coating

Polyurethane conformal coatings offer superior abrasion and chemical resistance compared to acrylic coatings. They provide excellent protection against moisture and are suitable for applications that require a tough, durable coating.

Epoxy Conformal Coating

Epoxy conformal coatings are known for their exceptional chemical and abrasion resistance. They offer excellent adhesion to PCB surfaces and provide a high level of protection against moisture and other environmental factors.

Parylene Conformal Coating

Parylene conformal coatings are applied using a vapor deposition process, resulting in a thin, uniform coating that conforms to the PCB surface. They offer excellent moisture and chemical resistance and are suitable for applications that require a high degree of protection.

Guide 2: Assessing Your PCB’s Environmental Exposure

When selecting a PCB conformal coating, it is essential to consider the environmental factors your PCB will be exposed to. These factors can include:

• Humidity and moisture
• Temperature extremes
• Chemical exposure
• Dust and debris
• Mechanical stress and vibration

By understanding the specific environmental challenges your PCB will face, you can choose a conformal coating that provides the necessary protection.

Guide 3: Considering the Application Method

PCB conformal coatings can be applied using various methods, each with its own advantages and limitations. The most common application methods include:

• Brush coating
• Spray coating
• Dip coating
• Selective coating

Brush Coating

Brush coating is a manual application method suitable for small-scale production or touch-up work. It offers good control over the coating thickness but can be time-consuming and may result in an uneven finish.

Spray Coating

Spray coating is a popular method for applying conformal coatings to PCBs. It offers fast coverage and can be automated for high-volume production. However, it may require masking of sensitive components and can result in overspray.

Dip Coating

Dip coating involves immersing the PCB in a tank of conformal coating material. This method provides excellent coverage and is suitable for high-volume production. However, it may require additional drying time and can be challenging to control the coating thickness.

Selective Coating

Selective coating involves applying the conformal coating only to specific areas of the PCB. This method is useful when certain components must be left uncoated or when different coating materials are required for different parts of the PCB.

Guide 4: Evaluating the Dielectric Strength

Dielectric strength is a measure of a conformal coating’s ability to withstand electrical stress without breaking down. When choosing a PCB conformal coating, consider the dielectric strength required for your application.

Conformal Coating Type	Dielectric Strength (V/mil)
Acrylic	1,500 – 2,500
Silicone	1,000 – 2,000
Polyurethane	1,500 – 2,500
Epoxy	1,500 – 3,000
Parylene	5,000 – 7,000

Guide 5: Considering the Curing Process

The curing process is an essential factor to consider when selecting a PCB conformal coating. Different coating materials have varying curing requirements, which can impact production time and costs.

• Acrylic coatings typically air dry and do not require elevated temperatures for curing.
• Silicone coatings may require moisture or heat to cure, depending on the specific formulation.
• Polyurethane coatings often require elevated temperatures for curing.
• Epoxy coatings usually require heat curing and have longer curing times compared to other coating types.
• Parylene coatings are applied using a vapor deposition process and do not require additional curing.

Guide 6: Evaluating the Rework and Repair Capabilities

At times, coated PCBs may require rework or repair. When choosing a conformal coating, consider the ease of removal and the ability to rework or repair the coated PCB.

• Acrylic coatings can be easily removed using solvents and are well-suited for rework and repair.
• Silicone coatings can be challenging to remove and may require mechanical abrasion or specialized solvents.
• Polyurethane coatings can be removed using solvents but may require more effort compared to acrylic coatings.
• Epoxy coatings are difficult to remove and may require mechanical abrasion or burn-through techniques.
• Parylene coatings are challenging to remove and typically require specialized plasma etching equipment.

Guide 7: Assessing the Coating Thickness

The thickness of the conformal coating is an important consideration, as it directly affects the level of protection provided to the PCB. When selecting a coating thickness, consider the following factors:

• The environmental conditions the PCB will be exposed to
• The component heights and spacing on the PCB
• The desired level of protection

Typical coating thicknesses range from 25 to 250 microns (1 to 10 mils), depending on the coating material and application method.

Guide 8: Evaluating the Material Compatibility

When choosing a PCB conformal coating, ensure that the coating material is compatible with the components and materials used on your PCB. Compatibility issues can lead to adverse effects such as component damage, coating adhesion problems, or chemical reactions.

• Acrylic coatings are compatible with most PCB materials and components.
• Silicone coatings may not be suitable for use with certain plastics due to potential chemical interactions.
• Polyurethane coatings are generally compatible with a wide range of PCB materials and components.
• Epoxy coatings are compatible with most PCB materials but may require surface preparation for optimal adhesion.
• Parylene coatings are highly compatible with PCB materials and components due to their inert nature.

Guide 9: Considering the Thermal Conductivity

In some applications, such as high-power electronics or heat-sensitive components, the thermal conductivity of the conformal coating is a crucial factor. A coating with high thermal conductivity can help dissipate heat more effectively, improving the overall performance and reliability of the PCB.

Conformal Coating Type	Thermal Conductivity (W/mK)
Acrylic	0.2 – 0.3
Silicone	0.1 – 0.3
Polyurethane	0.2 – 0.3
Epoxy	0.2 – 1.0
Parylene	0.1 – 0.2

Guide 10: Evaluating the Cost and Availability

When selecting a PCB conformal coating, consider the cost and availability of the coating material and the associated application equipment. Some factors to consider include:

• Material cost per liter or kilogram
• Equipment costs for application and curing
• Availability of the coating material and equipment
• Minimum order quantities and lead times

Balancing cost and performance is essential to ensure that the selected conformal coating meets your project’s budget and requirements.

Guide 11: Considering the Environmental and Health Regulations

When working with PCB conformal coatings, it is crucial to consider the environmental and health regulations that may apply to your project. Some coatings may contain volatile organic compounds (VOCs) or other hazardous substances that are subject to regulations.

• Acrylic coatings may contain VOCs and require proper ventilation and personal protective equipment (PPE) during application.
• Silicone coatings are generally considered safe and environmentally friendly, with low VOC content.
• Polyurethane coatings may contain isocyanates, which can be hazardous if not handled properly.
• Epoxy coatings may contain hazardous substances and require proper ventilation and PPE during application.
• Parylene coatings are generally considered safe and environmentally friendly, with no VOCs or hazardous substances.

Guide 12: Seeking Expert Advice and Testing

When in doubt, seek expert advice from conformal coating manufacturers, suppliers, or experienced professionals in the electronics industry. They can provide valuable insights and recommendations based on your specific application requirements.

Additionally, always test the selected conformal coating on sample PCBs before implementing it in your production process. Conduct thorough testing to ensure that the coating meets your performance expectations and is compatible with your PCB materials and components.

Frequently Asked Questions (FAQ)

1. How do I choose the right conformal coating for my PCB?

To choose the right conformal coating for your PCB, consider factors such as environmental exposure, application method, dielectric strength, curing process, rework and repair capabilities, coating thickness, material compatibility, thermal conductivity, cost, availability, and environmental and health regulations. Evaluate your specific requirements and consult with experts or suppliers to make an informed decision.

2. Can I apply multiple types of conformal coatings on the same PCB?

Yes, it is possible to apply multiple types of conformal coatings on the same PCB. This approach is called selective coating and is useful when different parts of the PCB require different levels of protection or when certain components must be left uncoated. However, ensure that the different coating materials are compatible with each other and the PCB components.

3. How do I remove conformal coating from a PCB for rework or repair?

The method for removing conformal coating depends on the type of coating material. Acrylic coatings can be easily removed using solvents, while silicone and polyurethane coatings may require more effort or specialized solvents. Epoxy and parylene coatings are difficult to remove and may require mechanical abrasion, burn-through techniques, or plasma etching equipment.

4. What is the typical thickness of a conformal coating?

The typical thickness of a conformal coating ranges from 25 to 250 microns (1 to 10 mils), depending on the coating material and application method. Thicker coatings generally provide higher levels of protection, but the thickness should be balanced with other factors such as component spacing and the desired performance characteristics.

5. Are conformal coatings environmentally friendly and safe to use?

The environmental friendliness and safety of conformal coatings vary depending on the coating material. Some coatings, such as silicone and parylene, are generally considered safe and environmentally friendly, with low VOC content and no hazardous substances. Other coatings, such as acrylic, polyurethane, and epoxy, may contain VOCs or hazardous substances and require proper ventilation and personal protective equipment during application. Always consult the material safety data sheets (MSDS) and follow the recommended safety guidelines when working with conformal coatings.

Conclusion

Selecting the right PCB conformal coating is essential for ensuring the reliability, longevity, and performance of your electronic devices. By considering the 12 guides presented in this article, you can make an informed decision based on your specific application requirements.

Remember to evaluate factors such as environmental exposure, application method, material properties, compatibility, cost, and regulations when choosing a conformal coating. Seek expert advice and conduct thorough testing to validate your selection and ensure the best possible results for your PCB Protection needs.
