What is Flying Probe Test?

Flying Probe Test (FPT) is an advanced testing method used in the Printed Circuit Board Assembly (PCBA) process to ensure the quality and functionality of the assembled PCBs. Unlike traditional Bed-of-Nails Testing, which requires a custom-designed fixture for each PCB design, FPT utilizes a set of movable probes that can easily adapt to different board layouts. This flexibility makes FPT an ideal solution for low-volume production runs, prototypes, and boards with high component density or complex designs.

How Does Flying Probe Test Work?

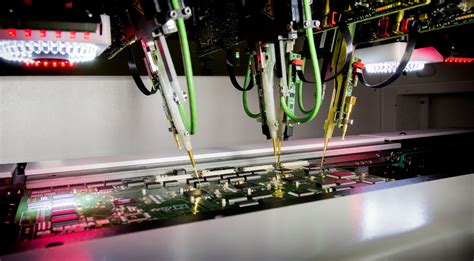

The FPT machine consists of several key components:

1. Movable probes: These probes, typically ranging from 4 to 8 in number, can move freely across the PCB surface to test various points on the board.
2. High-precision cameras: Cameras are used to accurately position the probes on the test points and detect any visual defects on the PCB.
3. Software: Advanced software controls the movement of the probes, executes test programs, and analyzes the results.

During the testing process, the FPT machine follows these steps:

1. The PCB is placed on the machine’s test bed.
2. The cameras scan the board to identify the test points and create a virtual map of the PCB.
3. The probes move to the designated test points and perform various measurements, such as continuity, resistance, capacitance, and inductance.
4. The software analyzes the test results and compares them with the predefined acceptable ranges.
5. If any defects or inconsistencies are detected, the machine alerts the operator and marks the problematic areas on the PCB.

Advantages of Flying Probe Test

1. Flexibility

One of the main advantages of FPT is its flexibility. As the probes can move freely across the PCB surface, there is no need for a custom-designed fixture for each board design. This makes FPT ideal for testing low-volume production runs, prototypes, and boards with frequent design changes.

2. High Test Coverage

FPT can test a wide range of components and circuit paths on the PCB, including:

• SMD and through-hole components
• Passive components (resistors, capacitors, inductors)
• Active components (ICs, transistors, diodes)
• Interconnections and vias
• Solder joints

This comprehensive test coverage ensures that the assembled PCBs meet the required quality standards and reduces the risk of field failures.

3. Improved Fault Detection

FPT machines are equipped with advanced software algorithms that can detect various types of faults, such as:

• Short circuits
• Open circuits
• Component misplacements
• Incorrect component values
• Solder bridges
• Insufficient solder joints

By identifying these faults early in the production process, manufacturers can reduce scrap rates and improve overall product quality.

4. Reduced Setup Time and Cost

Traditional bed-of-nails testing requires a custom-designed fixture for each PCB design, which can be time-consuming and expensive to produce. In contrast, FPT eliminates the need for these fixtures, reducing setup time and cost. This makes FPT particularly cost-effective for low-volume production runs and prototypes.

Limitations of Flying Probe Test

1. Testing Speed

One of the main limitations of FPT is its testing speed. As the probes need to move from one test point to another, the testing process can be slower compared to bed-of-nails testing, which tests all points simultaneously. However, advancements in FPT technology, such as the use of multiple probes and optimized test sequences, have significantly improved testing speeds in recent years.

2. Limited Accessibility

In some cases, the probes may have difficulty accessing certain test points on the PCB, such as those located under large components or in tight spaces. This can result in incomplete test coverage and potentially missed faults. To mitigate this issue, manufacturers can optimize their PCB designs to ensure adequate probe accessibility.

Implementing Flying Probe Test in PCBA

To successfully implement FPT in the PCBA process, manufacturers should consider the following factors:

1. Test Program Development

Developing an effective test program is crucial for ensuring comprehensive test coverage and accurate fault detection. The test program should include:

• Test point locations
• Test sequences
• Measurement parameters (continuity, resistance, capacitance, inductance)
• Acceptable value ranges
• Fault detection criteria

Manufacturers can use specialized software tools to create and optimize their test programs based on the PCB design files (e.g., Gerber files, CAD data).

2. Machine Selection

When selecting an FPT machine, manufacturers should consider factors such as:

• Number of probes
• Probe type (e.g., spring-loaded, capacitive)
• Probe positioning accuracy
• Testing speed
• Software capabilities
• Price and maintenance costs

It’s essential to choose a machine that meets the specific requirements of the PCB designs being tested and fits within the manufacturer’s budget.

3. Operator Training

Proper operator training is essential for ensuring the efficient and effective use of FPT machines. Operators should be knowledgeable about:

• Machine setup and calibration
• Test program creation and optimization
• Fault identification and troubleshooting
• Maintenance and upkeep of the machine

Regular training and skill updates can help operators stay current with the latest FPT technologies and best practices.

Future Trends in Flying Probe Test

As the electronics industry continues to evolve, FPT technology is expected to advance to meet the changing needs of PCB manufacturers. Some of the future trends in FPT include:

1. Increased Testing Speed

FPT machine manufacturers are continually working on improving testing speeds to meet the demands of high-volume production. This includes the development of machines with more probes, faster probe movement, and optimized test sequences.

2. Integration with Other Testing Methods

Combining FPT with other testing methods, such as automated optical inspection (AOI) and in-circuit testing (ICT), can provide a more comprehensive and efficient testing solution. This integration allows for the detection of a wider range of faults and reduces overall testing time.

3. Improved Probe Technologies

Advancements in probe technologies, such as the use of micro-electromechanical systems (MEMS) probes or non-contact probes, can enhance the accessibility and accuracy of FPT. These new probe types can test smaller and more densely packed components, as well as delicate or sensitive components that may be damaged by traditional contact probes.

4. Automation and Data Analytics

The integration of automation and data analytics into FPT systems can help manufacturers optimize their testing processes and improve overall quality control. Automated data collection and analysis can provide valuable insights into common fault patterns, process inefficiencies, and areas for improvement.

Frequently Asked Questions (FAQ)

1. Is Flying Probe Test suitable for high-volume production?

While FPT is more commonly used for low-volume production runs and prototypes, advancements in testing speeds and the use of multiple probes have made it increasingly viable for high-volume production. However, for extremely high-volume runs, bed-of-nails testing may still be more cost-effective.

2. Can Flying Probe Test detect all types of PCB faults?

FPT can detect a wide range of faults, including short circuits, open circuits, component misplacements, incorrect component values, solder bridges, and insufficient solder joints. However, it may not be able to detect some visual defects or functional issues that require additional testing methods, such as AOI or functional testing.

3. How long does it take to develop a Flying Probe Test program?

The time required to develop an FPT program depends on the complexity of the PCB design and the experience of the programmer. On average, it can take anywhere from a few hours to a few days to create and optimize a test program. However, this is still generally faster than the time required to design and manufacture a custom bed-of-nails fixture.

4. Can Flying Probe Test be used for double-sided PCBs?

Yes, FPT can be used for testing double-sided PCBs. Most modern FPT machines are equipped with top and bottom probes that can access test points on both sides of the board. However, the accessibility of certain test points may be limited by the presence of components on the opposite side.

5. How much does a Flying Probe Test machine cost?

The cost of an FPT machine can vary widely depending on factors such as the number of probes, testing speed, software capabilities, and brand. Entry-level machines with basic features can cost around $50,000 to $100,000, while high-end machines with advanced capabilities can cost upwards of $500,000. It’s essential to carefully consider your specific testing needs and budget when selecting an FPT machine.

Conclusion

Flying Probe Test is a versatile and efficient testing method that plays a crucial role in ensuring the quality and reliability of PCBAs. Its flexibility, high test coverage, and improved fault detection capabilities make it an ideal solution for low-volume production runs, prototypes, and boards with complex designs. As the electronics industry continues to evolve, FPT technology is expected to advance, offering even greater benefits to PCB manufacturers.

By understanding the advantages, limitations, and best practices for implementing FPT in the PCBA process, manufacturers can make informed decisions about when and how to use this testing method. With the right combination of equipment, software, and operator skills, FPT can help manufacturers improve their product quality, reduce costs, and stay competitive in an ever-changing market.
