Use the correct heat load
Electrical input includes light output as well as heat. Estimate dissipated heat using device information at the operating condition. Model local device areas and neighboring sources instead of spreading all power uniformly over the board by default.

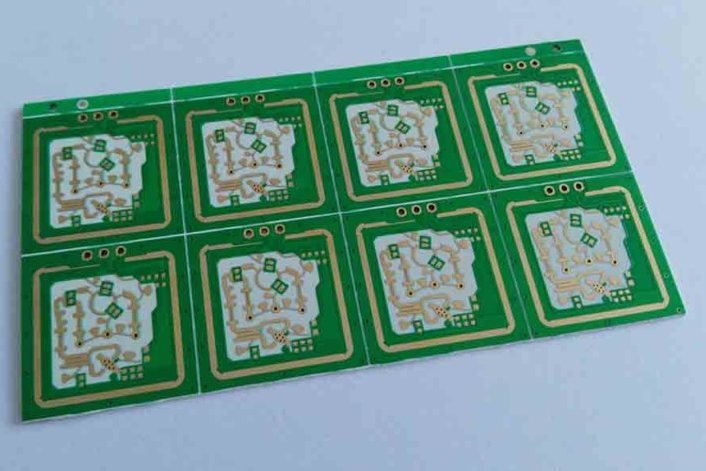

Review optical and assembly requirements
Reflective surfaces, pad finishes and solder-mask openings can affect light extraction and manufacturing. Check color stability and surface behavior after assembly exposure. Choose the process that supports the required pad geometry and attachment method.
Measure the real installation
Heat-sink attachment, airflow and enclosure temperature influence the result. Validate the assembled light engine under intended drive and cooling conditions. Avoid assigning a universal LED power threshold above which ceramic is automatically necessary.
Engineering example
A larger heat sink may not fix a poor board-to-sink contact. Measure or estimate the interface contribution before moving to a more expensive substrate.
Before you release the design
- State heat load and device footprint.
- Include optical surface and finish requirements.
- Test the complete light engine at its intended duty.
Sources and further technical reading
Manufacturer references support the material and process context. Worked examples and checklists are engineering guidance; they are not test results or supplier guarantees.
